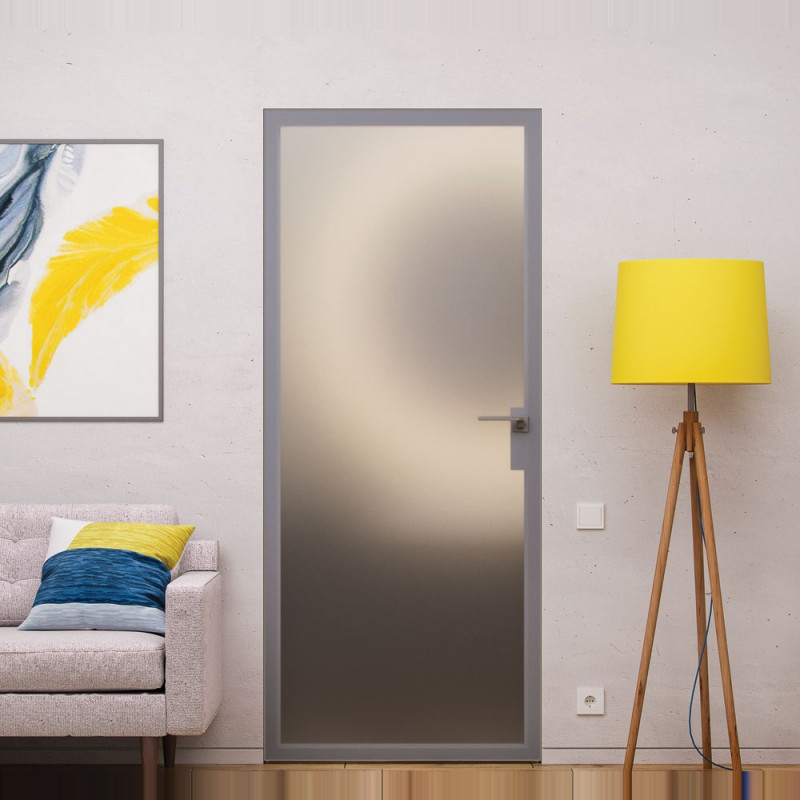

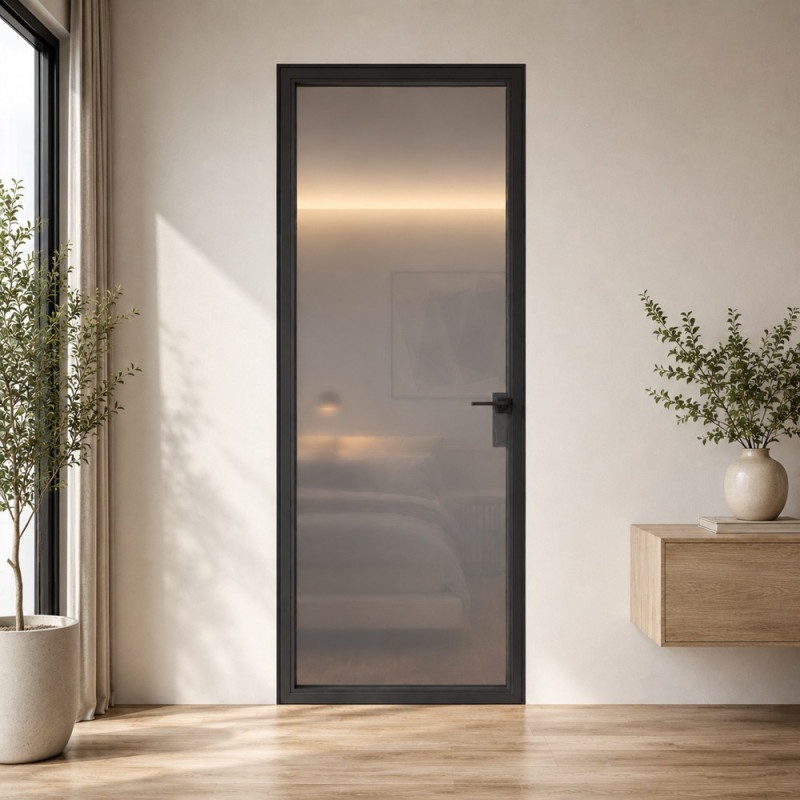

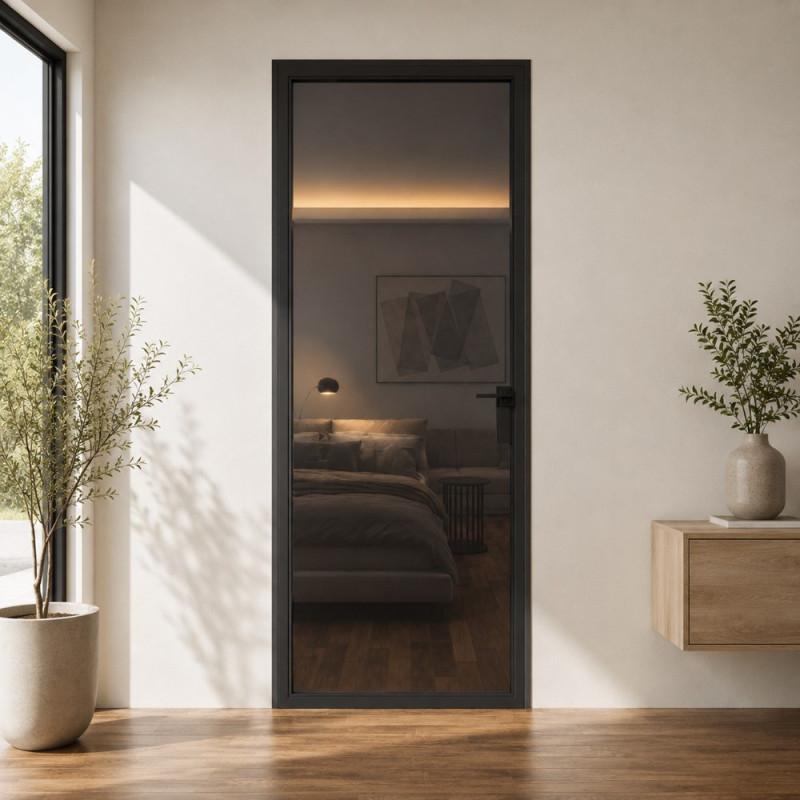

Top-Glass with translucent glass — an artistic light transmission with a soft gradient (satin, graphite, bronze, diamond). The leaf works as a light accent and divides space while keeping a sense of air. Concealed frame (AL or AL Black), per-side filling, sizes to your opening (height up to 3000 mm).
Lead time and package
Made to order — 6–8 weeks.
The base price includes the door block: leaf frame + reinforced concealed frame, filling on both sides, hardware set (AGB lock WC/PZ, concealed Otlav hinges, hinge caps), mortising and seal. Handle, installation kit and drop-down threshold are chosen separately.
Concealed (hidden) frame
The Top-Glass leaf is installed in a reinforced concealed frame — it does not protrude beyond the wall and needs no casing. The leaf is in an aluminium rim with filling and a seal.
Frame profile — reinforced aluminium. Colours: AL (aluminium) or AL Black. The set includes concealed Otlav hinges (2/3/4 pcs by height), AGB lock (WC or PZ), strike plate, seal, mounting brackets and rails.
Leaf core base
The base is the leaf frame in an aluminium rim. Chosen by opening direction:
| 40 mm | outward opening (standard) |
| 56 mm inside | inward opening, Euro quarter |
Leaf filling
The filling is chosen separately for each side — side A and side B, mix-and-match. Click to open the matching model:
Painted glass
Mirror
Oak veneer
Leaf width
Standard widths: 600, 700, 800, 900 mm.
Block and opening sizes depend on the leaf width. Custom-size step — from 10 mm.
Leaf height
| Height | Surcharge |
|---|
| up to 2099 mm (standard) | no surcharge |
| 2100–2299 mm | per size grid |
| 2300–2499 mm | per size grid |
| 2500–2800 mm | per size grid |
Leaves up to 3000 mm high are possible (American walnut veneer — up to 2700 mm). The exact surcharge depends on the filling.
Opening side and direction
Outward (40 mm) and inward (56 mm inside) opening are available, left or right. When blocks of both directions are installed side by side, a 13 mm height difference is taken into account.
Click the diagram to enlarge.
Left-hand opening
Right-hand opening
Additional options
Installation kit — consumables for mounting the door block.
Drop-down threshold cut-in (with a Trend threshold) — a concealed drop seal along the bottom of the leaf.
Concealed hinges and the lock mechanism (WC or PZ) are already included in the base package.
Care and use
Use in dry rooms (humidity up to 60%, +5…+40 °C). Wipe with a soft damp cloth without abrasives or solvents. Avoid impacts on the glass/mirror.
